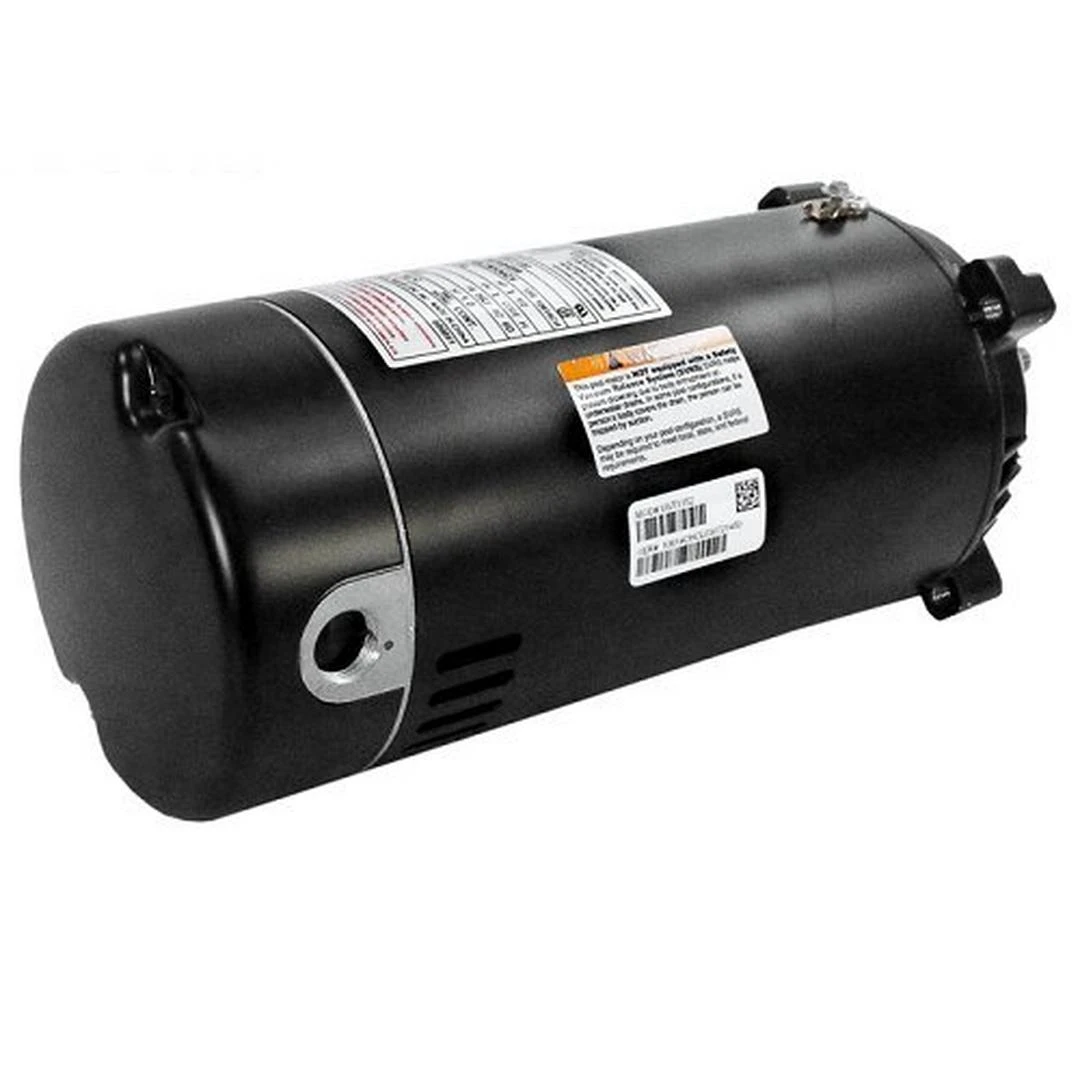

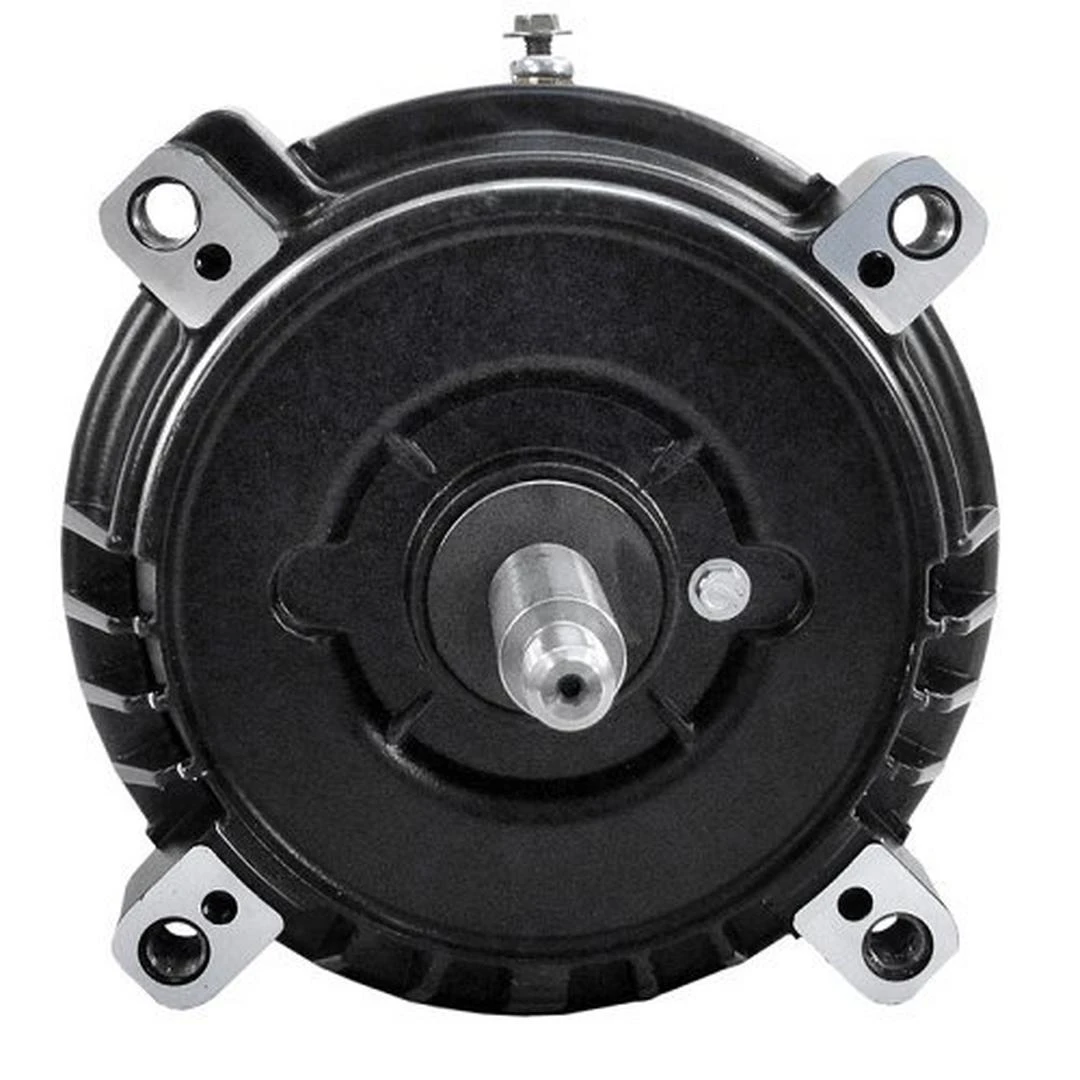

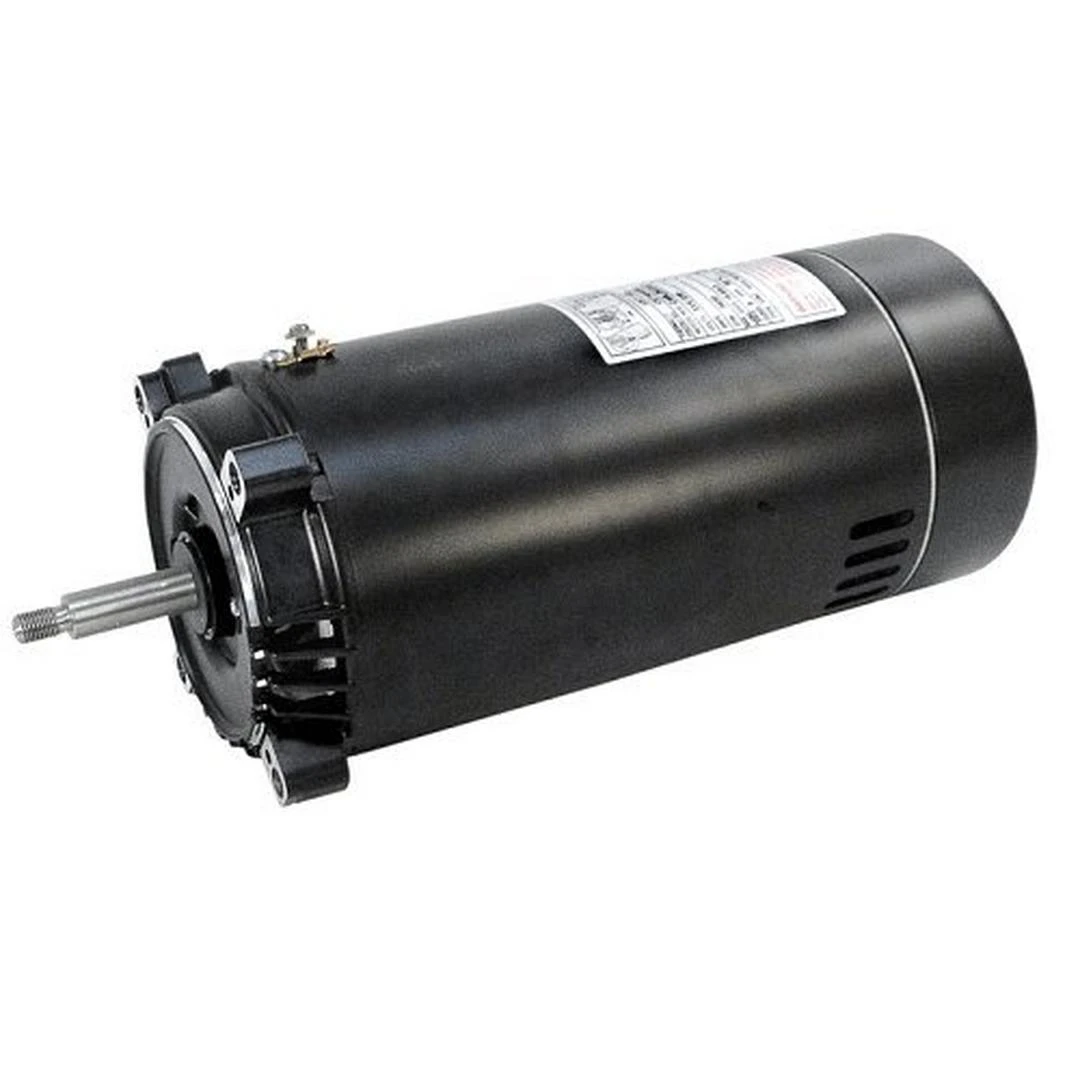

Century A.O. Smith – UST1152 C-Face 1-1/2 HP Up-Rated 56J Pool And Spa Pump Motor
Original price was: $319.99.$99.99Current price is: $99.99.
- Quick responses, top-notch service.
- Top Quality Products
- Quality that lasts, prices that don't.
- Nature-friendly materials, 100%.
- Compatible With: Hayward Super Pump, Hayward Super II, Hayward Max-Flo and Hayward Northstar
- NEMA 56C Face Mount
- Auto Protector, Open Dripproof
- Capacitor Start and Capacitor Start-Capacitor Run
- Rotation: CCW Pump End
- Sealed Ball Bearings, Sealed Switch Design
- 1081 Design
- 60 Hertz, 50 C Ambient
- 303 Stainless Steel Shaft
The Century Pool and Spa Pump Motor is a single phase motor with a permanent split capacitor for enhanced running efficiency. Equipped with an auto overload protector and ball bearings, the Century Pool and Spa Pump Motor provides long lasting operation. The Century Pool and Spa Pump Motor has a threaded shaft that allows for convenient and direct mounting. Available in horsepower ratings ranging from 1/2HP to 3HP, the Century A.O. Smith Pool and Spa Pump Motor comes in Full or Up-Rated models and provides long lasting and trustworthy performance.
Please Note: When replacing the motor on the pump, replacing the mechanical pump seal is required to ensure proper installation. Pump seal size varies depending on the pump and not the motor.
| Flange Type: | J Flange |
| Installation Type: | Residential |
| Phase Type: | Single Phase |
| Voltage: | 120V / 240V |
| Horsepower: | 1-1/2 HP |
| Voltage: | 115V / 230V |
| Shaft Type: | Threaded |
| Speed Settings: | Single Speed |
| Flange Type: | C Flange |
| Service Factor: | 1.00 – 1.25 |
| Rating Type: | Up-Rated |
| Product Type: | Pool Motor |
| Energy Efficiency: | Standard |
| Motor Frame: | 56 Frame |
| Compatible Pumps: | SP2610X15 |
| Compatible Pumps: | SP3010X15AZ |
| Compatible Pumps: | SP2810X15 |
| Compatible Pumps: | PHPM1.5 |
| Manufacturer: | Century A.O. Smith |
| Warranty: | 1-Year |
