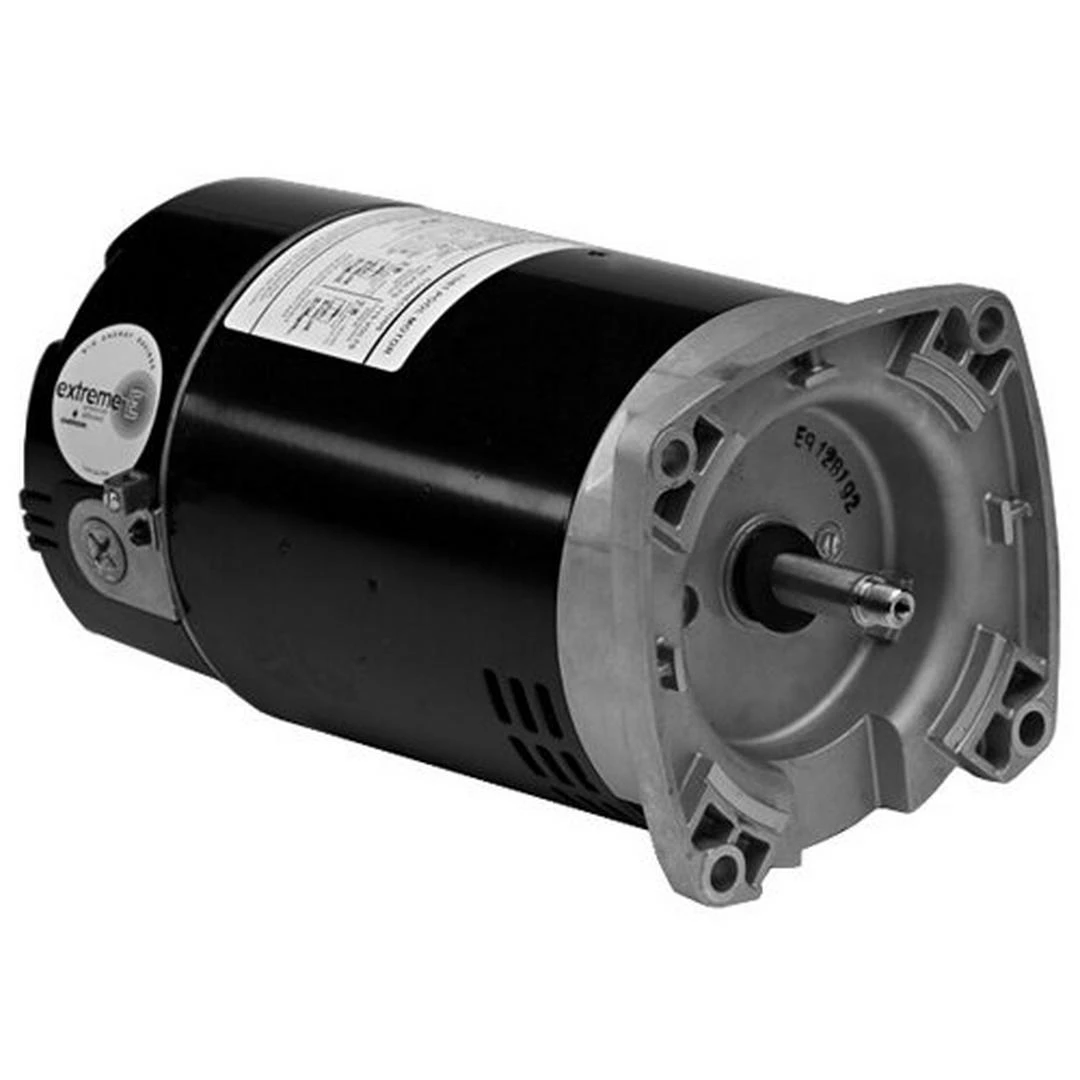

Century A.O. Smith – Emerson ASB661 Square Flange Single Speed 3/4HP Full Rated 56Y Pump Motor

Original price was: $339.99.Current price is: $96.99.

SKU: BGVZB 38530 Categories: Pool Pump Motors, Single Speed Replacement Motors

Quick responses, top-notch service.
Top Quality Products
Quality that lasts, prices that don't.
Nature-friendly materials, 100%.

U.S. Motor Emerson ASB661 Square Flange Single Speed 3/4HP Full Rated 56Y Pump Motor is a powerfully designed motor for your pool or spa.

Two compartments
Shaft Threads 1/2-20 UNF-2A
50 degrees Celsius ambient
1081 Design
Continuous Duty
Switchless design
Voltage selection device (dual voltage only)
Service Factor: 1.67
RPM: 3450
Length without Shaft: 11.99
5.9-5.5/11.0A 208-230/115V

The Emerson 56 Y-Frame Square Flange motor is a powerfully designed motor for your pool or spa. Its Triple Bearing Protection prevents premature wear and tear and its sealed ball bearings provide additional support giving you long-lasting performance. The Emerson 56 Y-Frame Square Flange motor has an open drip-proof enclosure that keeps water from flowing into the motor and its rear-mounted fan keeps it cool during operation. Its large 6.5 frame boasts a stainless steel shaft for extremely durable housing and its thermally protected, Class B insulated design keeps the motor cool to prevent overheating. The Emerson 56 Y-Frame Square Flange is a single speed pool and spa motor and its 3/4 HP rating deliver optimum performance.

Flange Type:	Square Flange
Voltage:	120V / 240V
Voltage:	115V / 208 – 230V
Service Factor:	1.50 – 1.75
Motor Frame:	56Y Frame
Energy Efficiency:	High Energy Efficiency
Speed Settings:	Single Speed
Horsepower:	3/4 HP
Pool Type:	In Ground
Rating Type:	Full-Rated
Product Type:	Pool Motor
Manufacturer:	U.S. Motors Emerson
Product Type:	Pool Pump
Pump Speed:	Single
Service Factor:	1.65
Total Horsepower:	1.24 THP
